We are selling a used GEA MultiClean KLH 1/1-re filter system manufactured in 2015.
The system is manufactured by GEA Air Treatment GmbH and is designed as a MultiClean filter unit. According to the nameplate, the nominal airflow is 1,200 m³/h, and the operating airflow is 1,000 m³/h.
The filter unit is located in the upper section of a steel frame. A collection hopper is positioned below the filter. Attached to the hopper is a motor-driven discharge unit from DMN Westinghouse, model AL 200 1MZC.
According to the GEA nameplate, the existing filter configuration includes, among other things, filter mats, a MultiCase frame, and a HEPA filter of class H11.

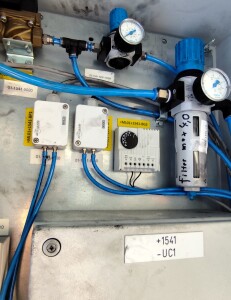

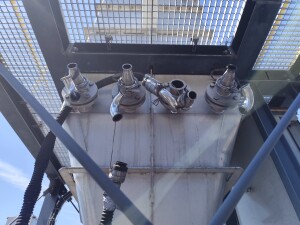

The system also features pneumatic components with compressed air piping, valves, pressure regulators, and pressure gauges. The upper section of the steel frame is equipped with an accessible maintenance platform and surrounding safety railings.
Technical Specifications
- Manufacturer: GEA Air Treatment GmbH
- Series: MultiClean
- Type / Model: MultiClean KLH 1/1-re
- Machine Type: Filter System
- Year of manufacture: 2015
- Order number: 499131_036
- Identification Number: DLT2002985-1
- Nominal airflow: 1,200 m³/h
- Operating flow rate: 1,000 m³/h
- Max. operating temperature: 80 °C
- Max. relative humidity: 100%
- Total initial pressure difference: 18 daPa
- Total final pressure differential: 147 daPa
- Permissible operating pressure: +2,000 / -5,000 daPa
- Total system weight according to GEA nameplate: 121 kg
- Dimensions including frame (L × W × H): approx. 240 × 240 × 550 cm
Filter configuration according to GEA nameplate
- Filter mat 1103
- Filter mat 1005
- MultiCase frame
- Particulate filter 6011
- Particulate filter 6011, filter class H11
- Pack holder, powder-coated

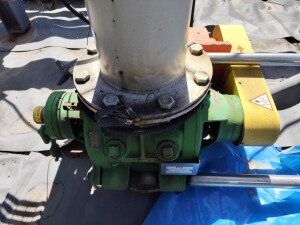

Discharge

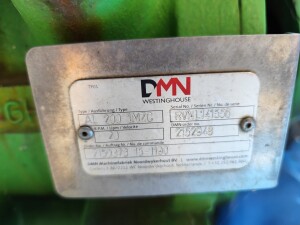

- Manufacturer: DMN Westinghouse
- Type: AL 200 1MZC
- RPM: 20
- Serial No.: RVNL141556
- DMN Order No.: 2152948
- Order No.: 2150873 15-1190

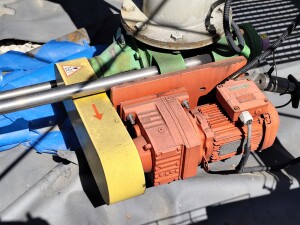

- Drive: Electric motor with gearbox
Features
- GEA MultiClean filter unit
- Collection hopper
- DMN Westinghouse discharge system
- Motorized gear drive
- Pneumatic tubing
- Pressure regulator
- Pressure Gauge
- Solenoid Valves
- Electrical connection and control components
- Steel base frame
- Maintenance platform
- Perimeter safety railing
Condition / Scope of Delivery
The GEA MultiClean filter system is in used condition. The photos show signs of wear and tear due to age and use, as well as dirt and, in some places, traces of corrosion or oxidation.
The scope of the offering includes the filter unit shown in the pictures with its collection hopper, discharge mechanism, and drive, pneumatic components, as well as the steel frame with maintenance platform and safety railing.
Based on the available information, no functional test has been documented. Therefore, statements such as “fully functional” or “technically tested” are not made.
The item is sold as shown in the pictures.
