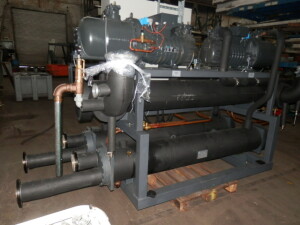

Screw compressor system, semi-thermal Air conditioning compressor Chiller 2 x 30 kW electric for air conditioning systems.

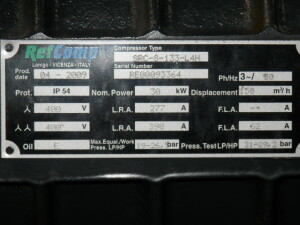

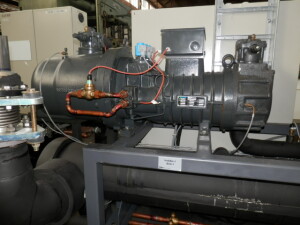

2x screw compressors
Manufacturer: RefComp
Type: SRC-S-133
Serial no.: RE00093364 & RE00093366
400 V; 277/398 A; 50 Hz; IP54
Rated
Power: 30 kW
Flow rate: 150 m�/h
Pressure: 19-26.5 bar

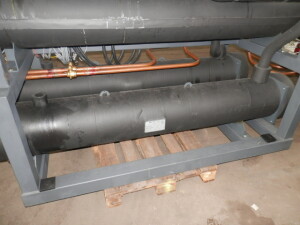

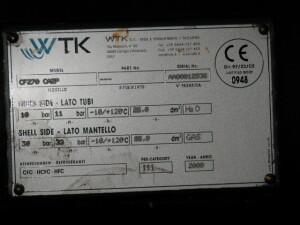

3x shell and tube heat exchangers
Manufacturer: WTK
Type: CF270 CA2P
Year of manufacture: 2009
272 kW (46.80 m�/h); � 273 mm
Tube side: 10-11 bar; -10/+120 �C; 26.0 dm�; H2O
Shell side: 30-33 bar; -10/+120 �C; 85.9 dm�; gas

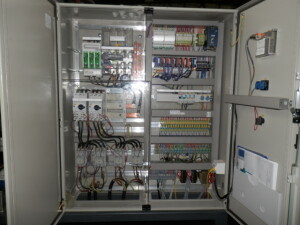

with switch box / control box
with main switch, control and switching modules and pcd7.D232 terminal display.
with piping and various other attachments, all mounted on a sturdy square tube frame.
Total approx. 3450 x 1400 H 1900 mm
we reserve the right to make changes and errors in the technical data, specifications, and prices, as well as to prior sales.
