double piston compressor system, semi-hermetic air conditioning compressor, chiller 2 x 18.5 kW with frequency converters

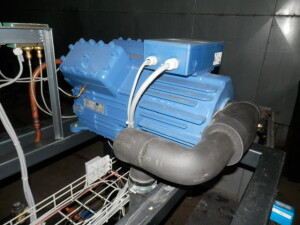

2x semi-hermetic piston compressors

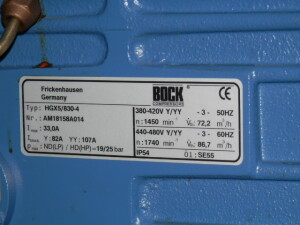

Manufacturer: Bock
Type: HGX5/830-4
No.: AM18158A014 & AM37155A014
380/420 V; 50 Hz; 3 ph; 1450 rpm.
Displacement: 72.20 m�; 19/25 bar
Capacity with cooling conditions and refrigerant R407C: 39.32 kW
Capacity with cooling conditions and refrigerant R404A: 41.27 kW
Capacity with conditions and refrigerant R134a: 31.45 kW

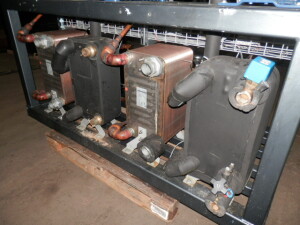

4x plate heat exchangers
Manufacturer: GEA WTT GmbH
Type: WP7M-120
Year of manufacture: 2006
max. permissible pressure: 30 bar
Temperature: -195/+195 �C
Contents page 1: 13.69 liters
Contents page 2: 13.92 liters

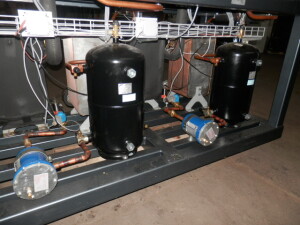

2x liquid collector Cat. 2
Manufacturer: FricoMEC
Type: RV-300X606
Volume: 35 liters
Max. pressure: 28 bar
Temperature: -10/+120 �C
2x converter
Manufacturer: Fuji Electric
Type: FRN18.5F1S-4E
3ph 380/480 V; 52.3 A; 50 Hz; 18.5 kW
with switch box / control box
with main switch, control and switching modules, and PCD7.D232 terminal display.

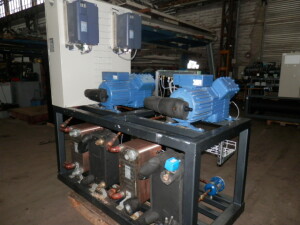

with piping and various other attachments, all mounted on a sturdy square tube frame.

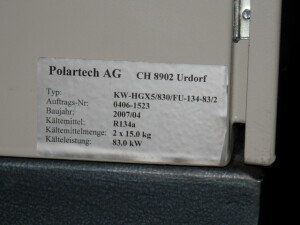

The system was built by Polartech AG, type KW-HGX5/830/FU-134-83/2.
Year of manufacture 2007, refrigerant R134a, refrigerant quantity 2x 15 kg, cooling capacity 83.0 kW.
Total approx. 2000 x 1100 H 2200 mm
Item location: 01587 Riesa, we would be happy to send you further pictures.
