We are selling a used MeWa UC 60 twin-shaft shredder, manufactured in 1996, for the industrial shredding of recycled and waste materials.

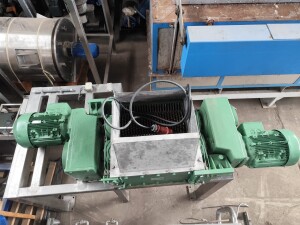

The machine features a robust twin-shaft cutting unit with intermeshing cutting discs. The cutting unit is driven from both sides by two SEW-EURODRIVE gearmotors, each with a power rating of 22 kW. This results in a total installed motor power of 44 kW.

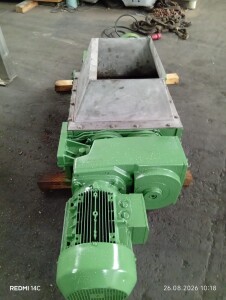

Material is fed into the machine via an upwardly tapered feed hopper. The shredder’s feed opening below measures approximately 600 × 600 mm.
Thanks to its robust construction and dual-shaft cutting principle, the MeWa UC 60 is suitable for use in recycling, processing, and shredding plants. The types of materials that can be processed with this machine depend on the material type, blade configuration, desired degree of shredding, and the respective operating conditions.

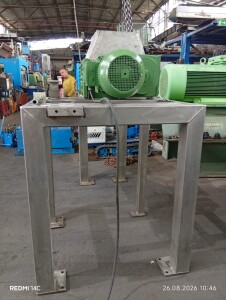

The shredder is mounted on a sturdy steel base frame. The frame measures approximately 2,000 × 1,150 × 1,320 mm (L × W × H). The weight of the unit, including the frame, is approximately 1,300 kg.

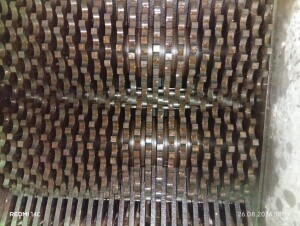

The twin-shaft cutting unit is clearly visible in the photos. The machine and cutting unit show signs of wear consistent with their age and previous industrial use, as well as surface corrosion in some areas. A precise assessment of the wear condition of the cutting elements can be made during an on-site inspection.
The machine is sold as shown in the pictures.
Technical Specifications

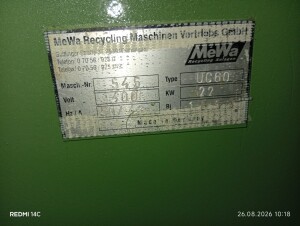

- Manufacturer: MeWa Recycling Maschinen Vertriebs GmbH
- Type / Model: UC 60
- Machine Type: Two-shaft shredder / grinding machine
- Year of manufacture: 1996
- Machine No.: 545
- Cutting system: Twin-shaft cutting unit
- Machine operating voltage: 400 V
- Frequency: 50 Hz
- Number of drives: 2
- Motor manufacturer: SEW-EURODRIVE
- Motor power: 2 × 22 kW
- Total rated motor power: 44 kW

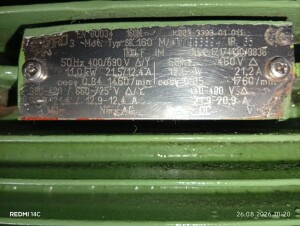

- Motor type: SK160 MV4
- Motor protection class: IP55
- Motor connection at 50 Hz: 400/690 V Δ/Y
- Motor speed at 50 Hz: 1,460 min⁻¹
- Power factor cos φ: 0.84
- Drive: on both sides via gearmotors
- Feed opening (L × W): approx. 600 × 600 mm
- Shredder dimensions (L × W × H): approx. 2,300 × 700 × 400 mm
- Frame dimensions (L × W × H): approx. 2,000 × 1,150 × 1,320 mm
- Feed hopper: approx. 570 × 400 × 400 mm
- Hopperdesign: tapers upward
- Weight including frame: approx. 1,300 kg
- Equipment: Feed hopper and steel base frame
Condition
The MeWa UC 60 is in used condition.
The housing, cutting mechanism, drives, and other components show signs of wear and tear due to age and use. Some discoloration and surface corrosion are visible on the cutting mechanism.
The blades and cutting discs are present. A definitive assessment of the remaining wear allowance for the individual cutting elements cannot be made based on the photos and should be verified during an on-site inspection if necessary.
No statement is made regarding a recently performed functional test or immediate technical readiness for use, unless further information is available.
Scope of Delivery
The scope of delivery includes:
- MeWa UC 60 twin-shaft shredder
- 2 × SEW-EURODRIVE gearmotors, 22 kW each
- Twin-shaft cutting unit
- Feed hopper
- Steel base frame
Scope of delivery as shown in the pictures.
Applications
The MeWa UC 60 is designed as an industrial shredder for use in recycling and processing plants. Depending on the material, blade configuration, and desired shredding result, a twin-shaft shredder of this design can be used for various recycling and waste materials.
The specific suitability for the material intended by the buyer should be verified prior to purchase.
