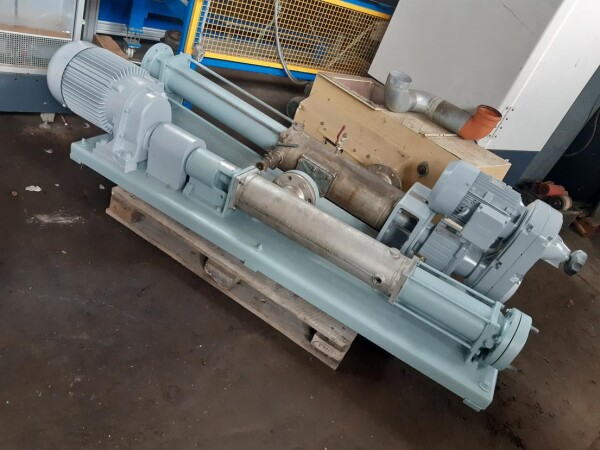

Used eccentric screw pump, 3.6 kW, 78–390 l/min, B18062

Screw Pump, Eccentric Screw Pump, Mohnopump, Used

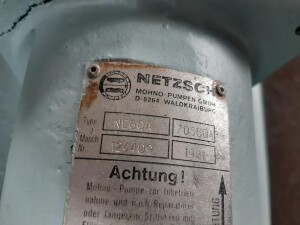

Manufacturer: NETZSCH
Model: NE60A
Pump body and screw shaft made of stainless steel
Year of manufacture: 1981
Flow rate: 78–390 l/min (approx. 19 m³/h at 2 bar)
220/380 V; 13.5/7.8 A; 50 Hz
3.6 kW

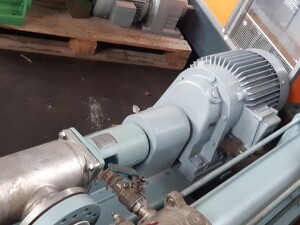

with variable-speed gear motor, 78–390 rpm
Connections: NW100/114.3 | ND16 bar | 1.4541 | DIN2633
Outer flange diameter 220 mm

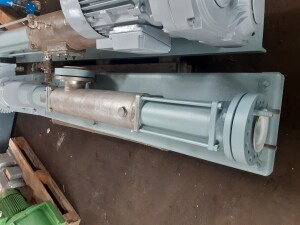

Conveyor section length approx. 1,160 mm
Overall dimensions: approx. 2,300 x 370 x 450 mm (H)

Subject to changes and errors in technical data, specifications, and prices, as well as prior sale.
