VA stainless steel tank approx. 4000L with frame rack, used
Pressure tank Filter tank Extraction Air filter Dust filter
Total tank height approx. 2600 mm
- approx. 700 mm of which is funnel
Tank diameter approx. 1600 mm
Volume approx. 4000 liters
Connection openings approx. � 300 mm
Connection flanges approx. � 445 mm
Side flap approx. 800 x 500 mm

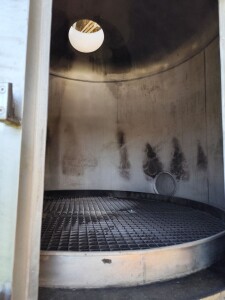

with grid insert/dust grate inside at the bottom
and top with bracket for dust filter
very sturdy design
Total L/W frame approx. 3100 x 2130 mm
Total height approx. 3600 mm
