We are selling a used Schröder & Co. scraped-surface heat exchanger / Kombinator crystallizer, Model 23-183, manufactured in 1994.
The unit is constructed of stainless steel and is designed for heat transfer or cooling of products using a scraped heat transfer surface. Due to the continuous scraping of the surface, this design is particularly suitable for processes in which the product tends to adhere to or crystallize on the heat transfer surfaces during heat treatment.
The Schröder & Co. Kombinator can be used for both cooling and crystallization, depending on the specific process. Scraped-surface heat exchangers of this design are used in particular for processing viscous, temperature-sensitive, or crystallizing products.

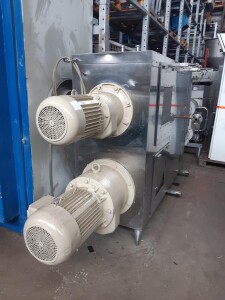

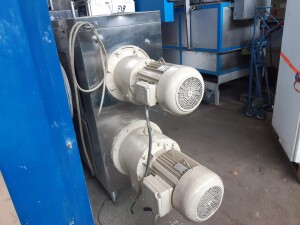

The machine is equipped with two drives rated at 18.5 kW and 11 kW. The operating voltage is 380 V. The overall dimensions of the unit are approximately 3.5 × 1.0 × 1.8 m.
Technical Specifications
- Manufacturer: Schröder & Co
- Type / Model: 23-183
- Machine type: Scraper heat exchanger / Combination crystallizer
- Year of manufacture: 1994
- Construction: Stainless steel
- Drive power: 18.5 kW and 11 kW
- Operating voltage: 380 V
- Overall dimensions: approx. 3.5 × 1.0 × 1.8 m
- Condition: used
Condition / Scope of delivery
Used condition.
The item is sold "as is" or as shown in the photos.
Technical specifications and details are subject to change and errors.
- Item weight: 3.400,00 kg
