Rotary tube furnace, gas furnace, pyrolysis furnace, thermolysis furnace, pyrolysis plant, tire pyrolysis,

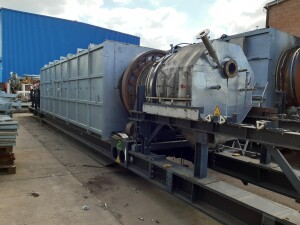

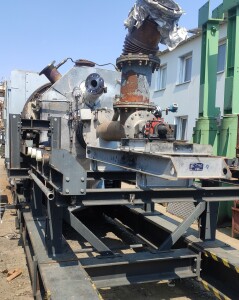

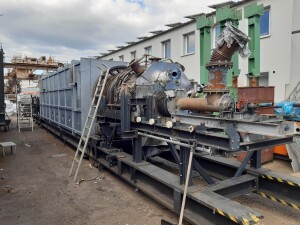

Rotary Kiln/ - Reactor, Carbonization Plant Used

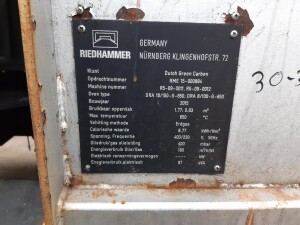

Manufacturer: RIEDHAMMER
Type: DRA 8/100-G-650
Year of construction 2015
approx. 1.5 years in operation
indirectly heated
Temperature max 650° C
Natural gas

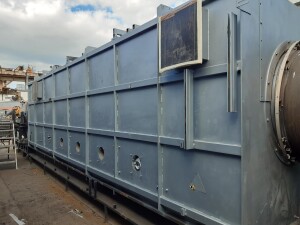

Furnace chamber approx. 8 x 2 x 2.2 m

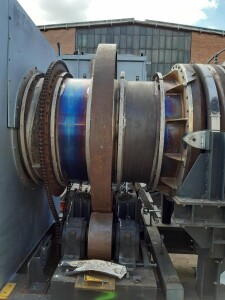

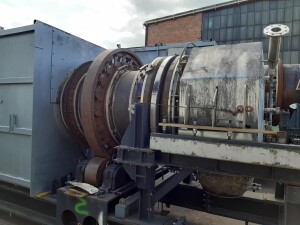

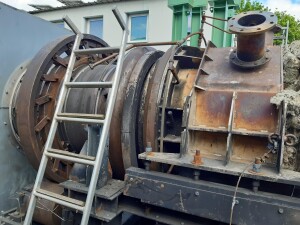

Rotating tube diameter approx. 1 m

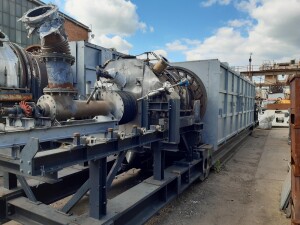

Total dimensions approx.: 17 x 2 x 3 m
Pyrolysis plant
Tires Pyrolysis rotary kiln / reactor
Carbonization plant
both rotary kiln reactors were designed with a total capacity of 16,000 tons per year.
B15441 + B15444
further plant components are available
Cooling screw
Carbon nozzle filter
Screws
Airlocks
and more

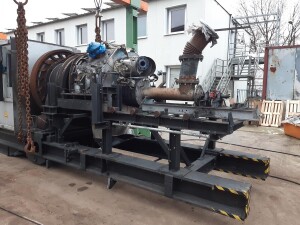

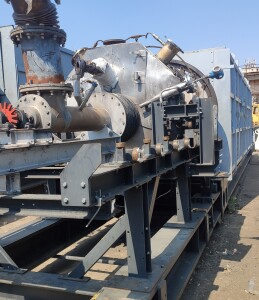

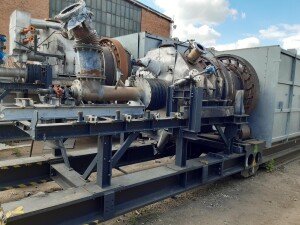

Rotary kiln with filling of the material into the reactor chamber by means of a press screw
In the rotary reactor, the rubber components are gasified under exclusion of air.
The gas is extracted
The residual materials such as carbon and wire are discharged by means of a screw at the end of the rotary kiln and transported away by means of a cooling screw
the smaller one has a weight of approx. 40 tons
the larger one weighs approx. 60 tons
subject to changes and errors in technical data, specifications and prices as well as prior sale.
