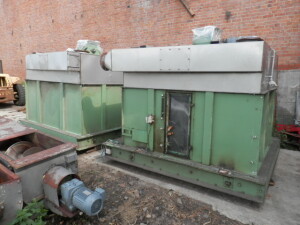

Cooler / heater with rotary valve and fan
Cooler / heater /
2x side opening approx. DN200
4x top opening approx. DN220

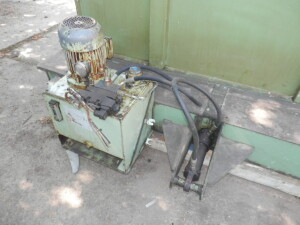

with hydraulic unit for the hydraulic discharge floor
Total approx. 2200 x 2800 H 1800/2100 mm

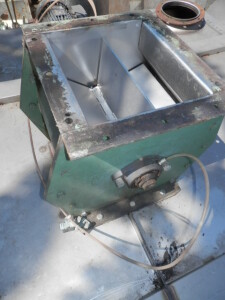

Rotary valve
Inlet / outlet opening approx. 300 x 250 mm
Installation height approx. 400 mm
Number of cells 6
Motor SEW 0.55 kW; 37 rpm

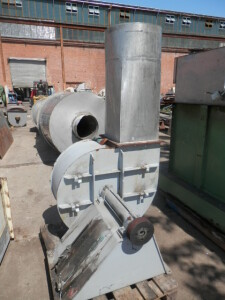

Blower

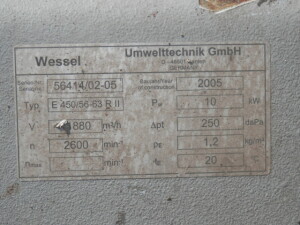

Wessel E450/56-63 RII
Year of manufacture: 2005
Volume flow approx. 11880 m³/h
Intake opening approx. 450 mm
Discharge opening approx. 380 x 380 mm / Ø 480 mm
Used for grain, pellets, rapeseed or similar products

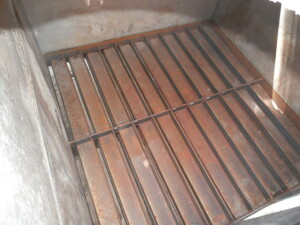

Flow rate is controlled by hydraulically operated discharge floor.
There are 2 almost identical systems available. The price refers to one system.
The system was previously used as a cooler/heater for 1 large oil press each.
Matching cyclones can also be offered for an additional charge.
subject to changes and errors in the technical data, specifications and prices as well as prior sale.
