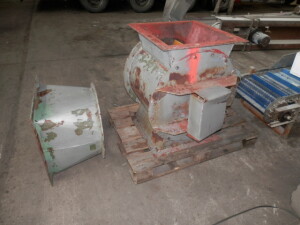

Rotary valve Dosing valve 820 mm used
Installation length approx. 820 mm
Cell width approx. 520 mm
Cell opening approx. 220 mm
Cell depth approx. 260 mm
Number of cells approx. 8
with interchangeable plastic/rubber slats
Inlet and outlet opening approx. 490 x 480 mm / flange 600 x 600 mm
Motor 1.5 kW; 39 rpm with chain drive
with connection flange, see pictures.
Total approx. 1000 x 1100 x 820 mm
we reserve the right to make changes and errors in the technical data, specifications, and prices, as well as to prior sales.
