Blow-through sluice Ø 280 mm 0.74 kW used B17794

Price on request
Available immediately
Only 1 available
1

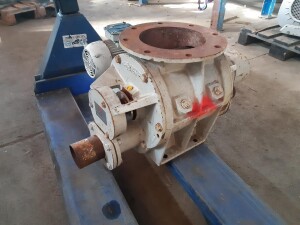

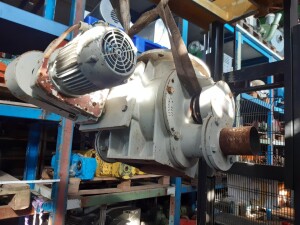

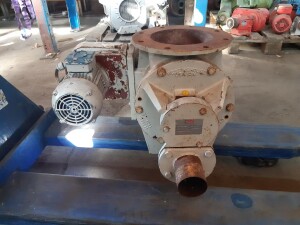

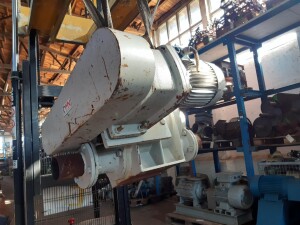

Blow-through sluice / rotary valve, used – Item B17794

This used blow-through sluice (also: rotary valve or rotary sluice) of type GS-200 / GY impresses with its solid technology and compact design. The rotary valve diameter is approx. 280 mm, and the inlet connection dimensions are approx. 280 × 200 mm. The drive unit (gear motor) has an output of approx. 0.74 kW at 25 rpm.

Technical data

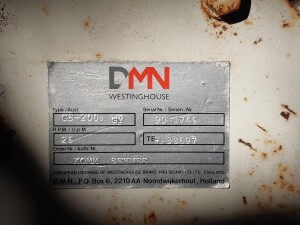

  • Type: GS-200 / GY
  • Rotary vane diameter: approx. 280 mm
  • Cell wheel width: approx. 320 mm
  • Number of cells: approx. 7–8
  • Inlet connection: approx. Ø 80 mm

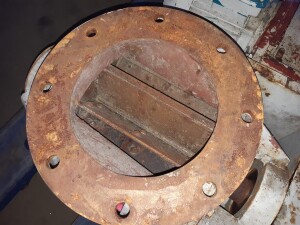

  • Inlet opening: approx. 280 × 200 mm

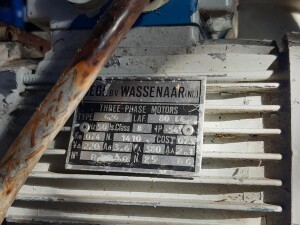

  • Drive: Gear motor, 0.74 kW
  • Speed: 25 rpm
  • Voltage: 380 V
  • Overall dimensions: approx. 700 × 650 × 400 mm
  • Weight: approx. 80 kg

Features & Benefits

  • Robust design for industrial processes
  • Low risk of leakage due to design
  • Low power consumption thanks to 0.74 kW motor
  • Flexible application options in conveying and dosing processes
  • Immediately available

Note

we reserve the right to make changes and errors in the technical data, specifications, and prices, as well as prior sale.

  • Item weight: 80,00 kg
