We are selling a used F.LLI Vimercati Type 3000x6 SI sheet metal shear, manufactured in 1995, for cutting sheet metal in industrial metal and sheet metal fabrication. The machine has a cutting length of 3,000 mm and is designed for a maximum sheet thickness of 6 mm.
The guillotine shear is suitable for straight cutting and trimming sheet metal and, due to its working width, is particularly well-suited for larger workpieces and sheet metal formats.
Technical Specifications

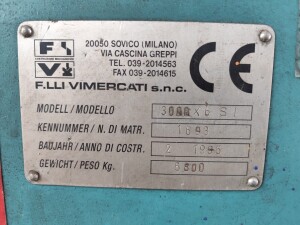

- Manufacturer: F.LLI Vimercati s.n.c.
- Model: 3000x6 SI
- Year of manufacture: 1995
- Cutting length: 3,000 mm
- Maximum sheet thickness: 6 mm
- Weight: approx. 5,800 kg
- Rearstop: motor-driven
- Positioning control: Triveneta Impianti PRG 910 A
- Operation: Control panel and foot control
Motorized backgauge with programmable positioning
The machine is equipped with a motor-driven rear stop. A programmable single-axis positioner, the Triveneta Impianti PRG 910 A, is provided for positioning.
With the PRG 910 A, the connected axis can be positioned both manually and automatically. In manual mode, the axis can be moved in both directions. In automatic mode, the desired position is entered via the numeric keypad, and positioning is then initiated by the control system.
The control system features a digital position display. This allows for precise movement to different stop positions, which simplifies operation, particularly when dealing with recurring cut dimensions.
The PRG 910 A features position monitoring and has stored machine parameters for axis positioning. These include, among other things, positioning tolerance, backlash compensation, and parameters for high-speed and low-speed movement. The specific parameters set on the machine are not specified.
Operation and Features
The guillotine shear is operated via the control panel located on the machine as well as via a foot control. In the work area, hold-down devices are provided to secure the sheet metal during the cutting process.
On the front of the machine are material supports or support arms to hold the sheets being processed.
The position of the backgauge can be adjusted using the Triveneta positioner and displayed digitally. This allows the desired cut dimensions to be set before the cutting process begins.

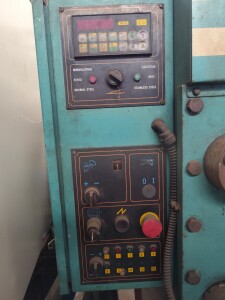

Triveneta Impianti PRG 910 A Control System
The installed PRG 910 A is a programmable single-axis positioner from Triveneta Impianti. An operating and programming manual for this control system, provided by the manufacturer from its archives, is available.
According to the manufacturer’s documentation, the control system supports both manual and automatic axis positioning. It also features a programmable cycle or repeat counter. The control system stores machine constants and counter values in an EEPROM.
The available documentation pertains to the controller or positioner and does not constitute a complete operating manual for the guillotine shear.
Test Run
A video of a test run performed on the machine is available. The video shows the machine, its operation, the motion sequences of the guillotine shear, and the positioning of the backgauge.
The documented test run serves to illustrate the machine’s condition as observed during the demonstration. It does not constitute a comprehensive statement regarding all machine functions or a technical inspection of the entire machine.
Applications
Sheet metal shears of this type are used for straight cuts of sheet metal. Typical applications include metal fabrication, steel construction, mechanical engineering, apparatus manufacturing, container construction, as well as in metalworking shops and general sheet metal processing facilities.
With a cutting length of 3,000 mm, even large-format sheet metal panels can be processed. The maximum specified sheet thickness is 6 mm.
Condition and Scope of Delivery
The shears are being offered used and show signs of wear and paint wear consistent with their age and previous industrial use.
We do not have an original operating manual from the machine manufacturer. However, an operating and programming manual from the control manufacturer is available for the built-in Triveneta Impianti PRG 910 A positioner.
Motor power, machine dimensions, maximum travel of the backgauge, stroke rate, and cutting angle are not specified, as there is currently no sufficiently reliable documentation available for this specific machine.
A viewing and demonstration of the machine are possible by appointment. The available video of the test run can also be used to evaluate the machine.
The machine is sold as shown in the pictures.
We reserve the right to make changes and correct errors in the technical data, specifications, and prices, and to sell the item prior to the sale.
